Magic Corner Pull- out-Soft Closing

The dead corner of an L-shape kitchen base cabinet is the most expensive square foot in a Singapore home. The cabinet nobody opens. The pot pushed back beyond reach. The wok that has not seen daylight since the day it was put away.

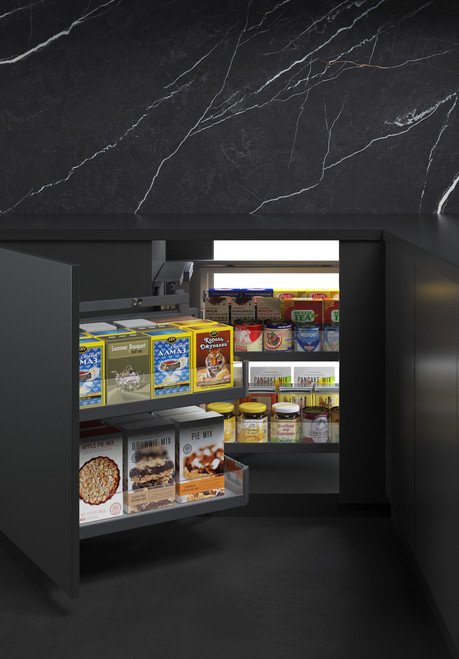

The Magic Corner Pull-Out, Soft-Closing returns that space to use. A single pull draws the front basket forward; an inner mechanism swings the back tier out behind it. Everything stored in the dead corner is brought to the cook, in one quiet motion.

Two sizes — MG602 for 800 mm cabinets, MG603 for 900 mm cabinets — and a configurable left or right orientation, decided at install. The soft-close damper means the basket draws back gently and lands without a thud. The cabinetry stays quiet, the corner stops being lost.

The hardware is by Shuno, the Arimokko line of soft-close kitchen mechanisms. Glass-shelf baskets, non-slip surface, ball-bearing slider, full extension. The cabinet that nobody opened becomes the cabinet that everyone reaches into first.

Specifications

	MG602	MG603
Compatible cabinet width	800 mm	900 mm
Assembly size (W × D × H)	864 × 545 × 545 mm	616 × 461 × 500 mm
Soft-close mechanism	Integrated damper	Integrated damper
Orientation	Left or right corner, configurable at install	Left or right corner, configurable at install
Slider	Full-extension ball-bearing	Full-extension ball-bearing
Basket shelves	Glass, non-slip surface	Glass, non-slip surface
Brand	Shuno (by Arimokko)	Shuno (by Arimokko)

Warranty

Every Magic Corner Pull-Out, Soft-Closing is covered by a 12-month warranty against defects in materials and workmanship, from the date of installation, under normal household use.

To make a claim, write to us at hello@arimokko.com with your invoice and a photo of the issue. We will arrange inspection. Where a defect is confirmed, replacement parts are supplied at no charge.

The warranty does not cover damage from improper installation, normal wear, misuse, or events outside our control. It is non-transferable and applies to the original purchaser only. Singapore law and jurisdiction apply.

For the full terms, please refer to the documentation supplied with your order.

1. The warranty guarantees that our cabinets will be free from faults or defects in workmanship and materials for the following periods dependant on range: Exclusions: Third-Party Manufacturer Items: The warranty does not cover items purchased from ARIMOKKO PTE LTD that are manufactured by another manufacturer. Separate warranties may apply to those specific items. Damage from Improper Use, Installation, or Maintenance: The warranty does not cover damage caused by poor, faulty, or incorrect use, installation, or maintenance of the cabinets. It is essential to follow the recommended guidelines for proper use, installation, and maintenance. Events Beyond ARIMOKKO PTE LTD's Control: Damage caused by events outside of ARIMOKKO PTE LTD's control, including Acts of God, fire, explosion, corrosive matter, extreme weather conditions, flood, vandalism, soiling, misuse, abrasion, improper storage, rot, infestation, leaks, or damage due to non-domestic use, is not covered. Normal Wear and Tear: Damage or color deterioration resulting from normal wear and tear over time is not covered by the warranty. Unauthorized Alterations or Repairs: The warranty does not cover damage caused by alterations or repairs carried out by parties other than ARIMOKKO PTE LTD, the authorized entity. Removal of Cabinets: Damage caused by the removal of cabinets following the initial installation is not covered by the warranty. Willful Damage, Abuse, or Negligence: Damage caused by willful damage, abuse, mistreatment, negligence, abnormal storage, or environmental conditions is not covered. Household Animals and Misuse by Children: Damage caused by household animals or misuse by children is not covered by the warranty. Limitations and Conditions: Removal of Defective Cabinets: The warranty does not cover the cost of removing defective cabinets or parts. Any replacement items from ARIMOKKO PTE LTD will be delivered directly to you. Installation Responsibility: The installation of any repaired or replacement cabinet or cabinet part is not the responsibility of ARIMOKKO PTE LTD. Inspection Requirement: To maintain the validity of a warranty claim, you must allow ARIMOKKO PTE LTD's representative to review the cabinet subject to the claim. Warranty Duration for Repaired/Replacement Parts: Any repaired or replacement cabinet parts are guaranteed under this warranty for the remaining period of the original warranty. Non-Transferrable Warranty: This warranty is non-transferrable and applies only to the original purchaser as indicated on the invoice. Jurisdiction and Disputes: This warranty is subject to the jurisdiction of the courts of Singapore. Any disputes or claims arising from the warranty or its subject matter shall be governed by and construed in accordance with Singapore law. For comprehensive information, please refer to the complete warranty documentation provided by ARIMOKKO PTE LTD. Exclusions: Third-Party Manufacturer Items: The warranty does not cover items purchased from ARIMOKKO PTE LTD that are manufactured by another manufacturer. Separate warranties may apply to those specific items. Damage from Improper Use, Installation, or Maintenance: The warranty does not cover damage caused by poor, faulty, or incorrect use, installation, or maintenance of the cabinets. It is essential to follow the recommended guidelines for proper use, installation, and maintenance. Events Beyond ARIMOKKO PTE LTD's Control: Damage caused by events outside of ARIMOKKO PTE LTD's control, including Acts of God, fire, explosion, corrosive matter, extreme weather conditions, flood, vandalism, soiling, misuse, abrasion, improper storage, rot, infestation, leaks, or damage due to non-domestic use, is not covered. Normal Wear and Tear: Damage or color deterioration resulting from normal wear and tear over time is not covered by the warranty. Unauthorized Alterations or Repairs: The warranty does not cover damage caused by alterations or repairs carried out by parties other than ARIMOKKO PTE LTD, the authorized entity. Removal of Cabinets: Damage caused by the removal of cabinets following the initial installation is not covered by the warranty. Willful Damage, Abuse, or Negligence: Damage caused by willful damage, abuse, mistreatment, negligence, abnormal storage, or environmental conditions is not covered. Household Animals and Misuse by Children: Damage caused by household animals or misuse by children is not covered by the warranty. Limitations and Conditions: Removal of Defective Cabinets: The warranty does not cover the cost of removing defective cabinets or parts. Any replacement items from ARIMOKKO PTE LTD will be delivered directly to you. Installation Responsibility: The installation of any repaired or replacement cabinet or cabinet part is not the responsibility of ARIMOKKO PTE LTD. Inspection Requirement: To maintain the validity of a warranty claim, you must allow ARIMOKKO PTE LTD's representative to review the cabinet subject to the claim. Warranty Duration for Repaired/Replacement Parts: Any repaired or replacement cabinet parts are guaranteed under this warranty for the remaining period of the original warranty. Non-Transferrable Warranty: This warranty is non-transferrable and applies only to the original purchaser as indicated on the invoice. Jurisdiction and Disputes: This warranty is subject to the jurisdiction of the courts of Singapore. Any disputes or claims arising from the warranty or its subject matter shall be governed by and construed in accordance with Singapore law. For comprehensive information, please refer to the complete warranty documentation provided by ARIMOKKO PTE LTD. Exclusions: Third-Party Manufacturer Items: The warranty does not cover items purchased from ARIMOKKO PTE LTD that are manufactured by another manufacturer. Separate warranties may apply to those specific items. Damage from Improper Use, Installation, or Maintenance: The warranty does not cover damage caused by poor, faulty, or incorrect use, installation, or maintenance of the cabinets. It is essential to follow the recommended guidelines for proper use, installation, and maintenance. Events Beyond ARIMOKKO PTE LTD's Control: Damage caused by events outside of ARIMOKKO PTE LTD's control, including Acts of God, fire, explosion, corrosive matter, extreme weather conditions, flood, vandalism, soiling, misuse, abrasion, improper storage, rot, infestation, leaks, or damage due to non-domestic use, is not covered. Normal Wear and Tear: Damage or color deterioration resulting from normal wear and tear over time is not covered by the warranty. Unauthorized Alterations or Repairs: The warranty does not cover damage caused by alterations or repairs carried out by parties other than Wren Kitchens Limited, the authorized entity. Removal of Cabinets: Damage caused by the removal of cabinets following the initial installation is not covered by the warranty. Willful Damage, Abuse, or Negligence: Damage caused by willful damage, abuse, mistreatment, negligence, abnormal storage, or environmental conditions is not covered. Household Animals and Misuse by Children: Damage caused by household animals or misuse by children is not covered by the warranty. Limitations and Conditions: Removal of Defective Cabinets: The warranty does not cover the cost of removing defective cabinets or parts. Any replacement items from ARIMOKKO PTE LTD will be delivered directly to you. Installation Responsibility: The installation of any repaired or replacement cabinet or cabinet part is not the responsibility of ARIMOKKO PTE LTD. Inspection Requirement: To maintain the validity of a warranty claim, you must allow ARIMOKKO PTE LTD's representative to review the cabinet subject to the claim. Warranty Duration for Repaired/Replacement Parts: Any repaired or replacement cabinet parts are guaranteed under this warranty for the remaining period of the original warranty. Non-Transferrable Warranty: This warranty is non-transferrable and applies only to the original purchaser as indicated on the invoice. Jurisdiction and Disputes: This warranty is subject to the jurisdiction of the courts of Singapore. Any disputes or claims arising from the warranty or its subject matter shall be governed by and construed in accordance with Singapore law. For comprehensive information, please refer to the complete warranty documentation provided by ARIMOKKO PTE LTD.
